DIY Internet Radio Tuner with WiFi Bluetooth Stereo and Amplifier Board

DIY Stereo Amplifier Board with 100W and DAC Optical Digital Input to RCA Aux Out,

Wireless Component Home Audio System with Music Alarm Clock Player WS161.

DIY Internet Radio Tuner and Access thousands of stations include BBC, LBC London and LBC UK Internet Radio

or LBC UK internet radio and music library through WiFi. Favourite list up to 99 presets, Headphone Output

Combination of UPnP/ DLNA streaming Media, internet radio and Bluetooth receiver:

RMS 50W x 2 Channel Speaker amplifier (4 ohms, 40 Hz-20 kHz, 0.1 percentage THD)

and 160mW RMS Headphone amp (32 ohms, 20 Hz - 20 KHz, 0.01% THD).

Optical and coaxial Audio inputs for TV and DVD:

DIY Stereo Amplifier Board DAC Optical to RCA output, 24-bit/192 KHz SPDIF toslink

Digital Input to analog audio converter L/R line out sockets

and stereo 3.5mm aux in jack. Frequency Response-0 ± 0.5 dB / 0 ± 3.0 dB

Mini Compact D/A Converter and Head phone Amp:

Stream Bit-perfect 24bit/192KHz HD with Low Jitter, with Output protect circuit,

Safe for Your Expensive Audio System, Optical and coaxial Audio inputs for TV & DVD

Dual Alarm clock and Sleep Timer Setting:

DIY Stereo Amplifier Board: 2 inchs HD display / Long distance pure copper Antenna

for WiFi and Bluetooth / EQ setting and Multi-language for menu display

and IR sensor remote control and Touch button/Bluetooth wireless streaming range up to 49ft or 15m

DIY Stereo Amplifier Board WiFi Wireless Network:

DIY Internet Radio Tuner: IEEE 802.11b/g/n (2.4 GHz), Perfectly suited for your desktop or a smaller space in your home

or office, because use legantdesign with 4mm thick aluminium front panel and aluminium casing shell so sure high quality

Product description

Standby mode

Can auto power off, any concern if you leave this amp on for extended periods of time (days at a time)，

Automatically detect

Automatically detect whether there is audio input, and it will trigger to enter the standby state if there is no audio input for several hours.

Sleep mode timer

Can be set. Open it for a long time without any worries, red or pure LED Indicator power light stay on even though the power switch is off,

Control LED Indicator

Light and Backlight Dimmer adjusted from 0 to 100% by select Knob Rotate on main unit or botton up/ down on remote control in DIY Internet Radio Tuner

Dual Music alarm

Clock and sleep timer With ID3 LCD Green 2 inch Display / EQ setting /Multi-language for menu display / IR sensor remote control

One single component unit

Compatible Internet Radio/Bluetooth 4.2/UPnP/ DLNA Meadia/ 3.5mm Jack aux input

Over 20,000 of stations worldwide, Through internet via WiFi,

Personalize your favourite list up to 99 presets or add the audio streaming URL via PC.

Control tuning internet radio channel via PC or smart phone as well as managing my Favourite list

Elegant design

with aluminium casing (242mm) / 12-month warranty, you can return the item: if you have any problems

Easy-to-Use Hi-Fi

Playback Setup for UPnP/DLNA compatible streaming: Repeat All,Repeat Once or Shuffle.

Dimmer in Standby

With rotate the [Tune/Select] knob on main unit or key up/down on remote control to adjust the backlight level at your preference which you feel comfortable especially during night time.

Resume when Power on

for The amplifier will resume to the last state of mode when the radio is power on next time,

e.g. if it was playing radio station before power off, it will resume playing

Memory playback

Last listened station when it is power on the next time.Mini Amp, Memory playback.

Key Features:

• Internet radio UPnP/ DLNA/ Bluetooth/ Digital and Analog Aux-input
• Dual alarm and sleep timer With Big LCD Remote Control
• Bluetooth 4.2 And WiFi dual Wireless mode
• Long-distance online software upgrade and maintenance
• Fastest power-to-play Internet radio solution With DLNA /UpnP local network Music streaming
• 802.11 b/g/n with WEP, WPA, WPA2
• SPI interface for STN LCD
• Rubber button infrared remote control
• Music streaming: Wi-Fi streaming, Bluetooth streaming Overview, 24-bit/96-KHz Gapless Playback DLNA, Real Audio, MP3, AAC + and WMA Compatible
• DLNA /UpnP local network streaming, Network Music Player, Plays Music Stored on your Computer
• 99 Memory Preset Stations, Search by Country, Genre and my Favorite Radios, Plug and Play
• Automatically detect whether there is audio input, and it will trigger to enter the standby state if there is no audio input for several hours

Specifications

Technical Specification

Model: WS161 PCBA

Amplifier:RMS 50W X 2 Channel Stereo, Total 100Watt, THD 0.04% ，4 ohms, 20 Hz - 20 kHz

Power Supply : 24V/ 3.5-4A ( 84-96W)

Power voltage: 100-240V~50/60Hz

Wireless Network: IEEE 802.11b/g/n

Wireless network frequency: 2.4 GHz

Security Protocol: WEP/WPA/WPA2

Bluetooth version: V4.2 BR/EDR compliant

Bluetooth frequency: 2.4 GHz

Bluetooth range: 10 meters (line of sight)

Bluetooth transmission power: 0 dBm

Audio input: Stereo jack 3.5 mm/ Opical(Toslink) and co-axial Digital in

Audio out put:RCA jack

External: WiFi/Bluetooth antenna

2 inch LCD View Area: 1.13" x 0.826"

LCD Graphic/Character Type: Graphic 128 x 64

Software Upgrade: auto Upgrade via Internet online

Unit Dimension: 17.3X11X4 CM(L x D x H)

Packing Weight: 0.8 kg / 1.7 lbs

Circuit board, Electronic component assembly for Aluminum housing

What's included in the box for DIY Internet Radio Tuner

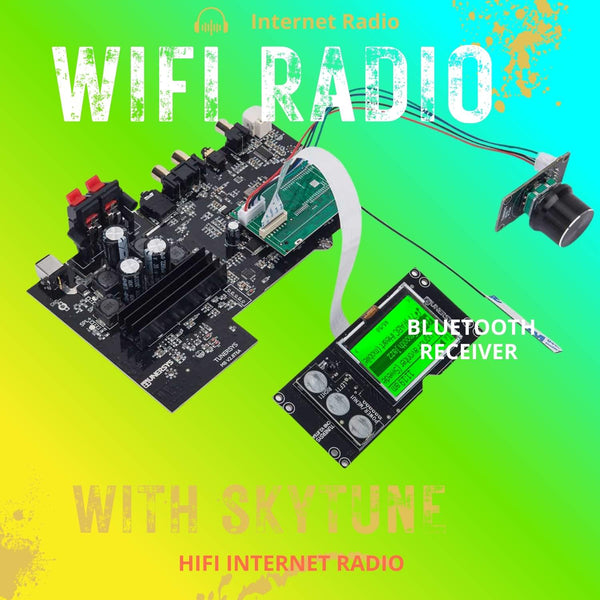

• 1x DIY Internet Radio Tuner DIY Stereo Amplifier Board
• 1x Mini WiFi/BT PCB Antenna
• 1x Remote control
• 1x English or Japanese User manual
